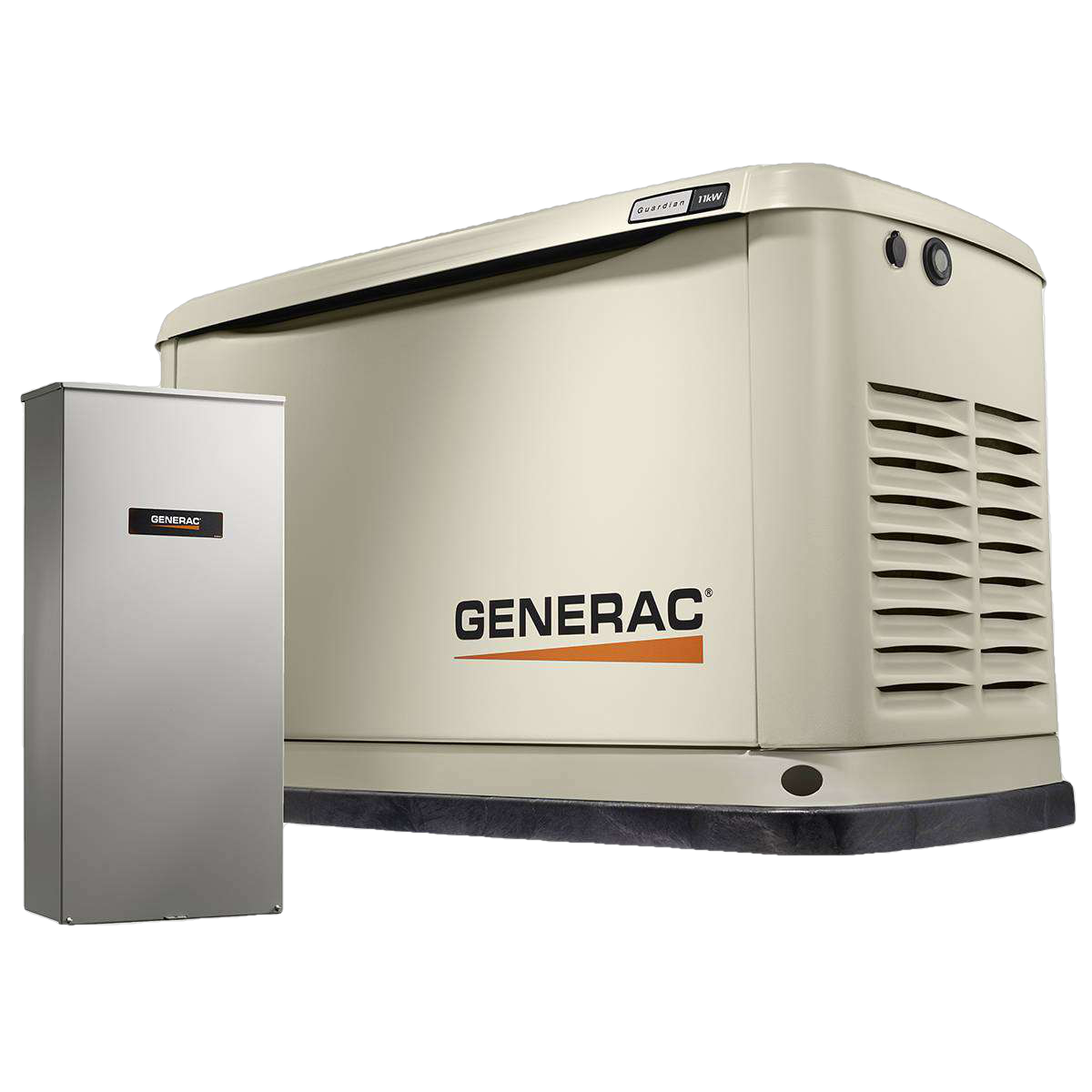

Generac 5826/5871 10kW Guardian LP/NG Standby Generator w/ 100 Amp Smart Transfer Switch New

Name: Generac 5826/5871 10kW Guardian LP/NG Standby Generator w/ 100 Amp Smart Transfer Switch New
Brand: Genpowerz Shop
SKU: 5826
Price: 1206.86 GBP
Availability: InStock

£1,206.86 £1,340.96

Free shipping

2-year warranty

30-day returns

Product variants

Generac Authorized Dealer

	5 year factory warranty
	Brand new and manufacturer direct
	Includes 50 amp automatic transfer switch
	Ships directly from Generac
	Works with liquid propane or natural gas
	Authorized Generac dealer

What's In the Box:

Generac Guardian/Centurion 10kw Standby generator
50 amp automatic transfer switch
Aluminum or steel enclosure
Manual

Provides essential circuit power protection for your home, ensuring the necessities remain powered during an outage. Has the ability to backup a 3-ton air conditioner, well pump or water heater, and the main rooms of your house.

Engine

Displacement: 530 cc
Fuel: Required fuel pressure to generator fuel inlet at all load ranges - 5 to 7 inches of water column for natural gas, 11 to 14 inches of water column for LP gas
;
Outputs are based upon natural gas value:
@ 1000 Btu per cubic feet and 2520 Btu per cubic feet with LP;
@ 35,314.7 Btu per cubic meter and 88,993 Btu per cubic meter with LP
Governor: (System) Electronic
Ignition: (System) Solid-state w/ Magneto
Oil Capacity: (Including Filter, Quarts/Liters) Approx. 1.7 qt/1.6 L
RPM: (Operating) 3,600 rpm
Starter: 12 Vdc
Type of Engine: GENERAC OHVI V-TWIN
Valves: (Arrangement) Overhead Valve
Compression Ratio: 9.5:1
Cylinders: (Number of) 2 ;
(Block) Aluminum w/ Cast Iron Sleeve

Features

Generac® Transfer Switches. Long life and reliability are
synonymous with Generac Power Systems. One reason for this
confidence is that the GENERAC product line includes its own transfer
systems and controls for total system compatibility.
Innovative Design & Prototype Testing are key components
of GENERAC’S success in “Improving power by design.” But it
doesn’t stop there. Total commitment to component testing, reliability
testing, environmental testing, destruction and life testing, plus testing
to applicable CSA, NEMA, EGSA, and other standards, allows you to
choose Generac Power Systems with the confidence that these
systems will provide superior performance.
Single Source Service Response from Generac’s extensive dealer
network provides parts and service know-how for the entire unit, from the
engine to the smallest electronic component.
Solid-State, Frequency Compensated Voltage Regulation.
This state-of-the-art power maximizing regulation system is standard on
all Generac models. It provides optimized FAST RESPONSE to changing
load conditions and MAXIMUM MOTOR STARTING CAPABILITY by
electronically torque-matching the surge loads to the engine. Digital
voltage regulation at ±1%.
Test Criteria: Prototype Tested, Nema Mg1-22 Evaluation, System Torsional Tested, Motor Starting Ability
True Power™ Electrical Technology: Superior harmonics
and sine wave form produce less than 5% Total Harmonic Distortion for
utility quality power. This allows confident operation of sensitive electronic
equipment and micro-chip based appliances, such as variable speed HVAC
systems.

Transmission

Main circuit breaker: (Line) 50 Amp
Rated Power: Rated Maximum Continuous Power Capacity (LP) 10,000 Watts ; Rated Maximum Continuous Power Capacity (NG) 10,000 Watts

Dimensions

Dimensions (LxWxH): (in/mm) 48 x 25 x 29/1218 x 638 x 732
Max. Load: Rated Maximum Continuous Load Current – 240 Volts (LP/NG) - 45.8/41.7
Rated AC Output: (Frequency) 60 Hz
Weight: (lb/kg) 407/184.6

General Information

Fuel Consumption: (Natural Gas - cu.ft./hr.(cu.meters/hr.)): ;
1/2 Load – 124 (3.51);
Full Load – 195 (5.52);
(Liquid Propane - ft3/hr (gal/hr) [l/hr]: ;
1/2 Load – 42.8 (1.18) 4.45;
Full Load – 70 (1.92) 7.28
Number of: (Rotor Poles) 2
Output: (Sound output in dB(A) at 23 ft (7 m) with generator operating at normal load) 63
Phase: 1
Power: (Factor) 1
Rated Voltage: 240
Battery: Requirement (not included) Group 26R, 12 Volts and 525 CCA Minimum
